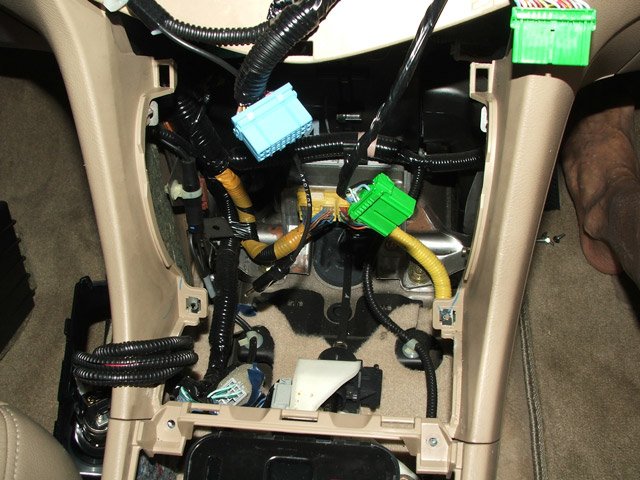

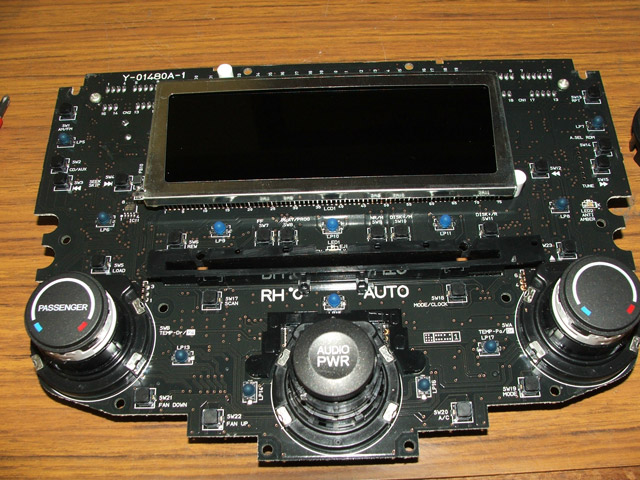

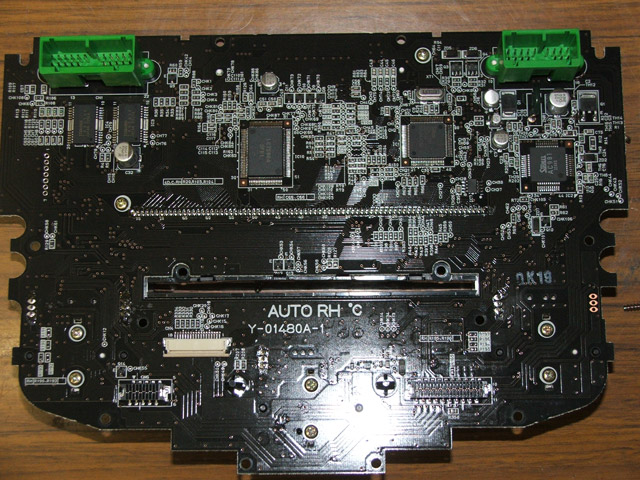

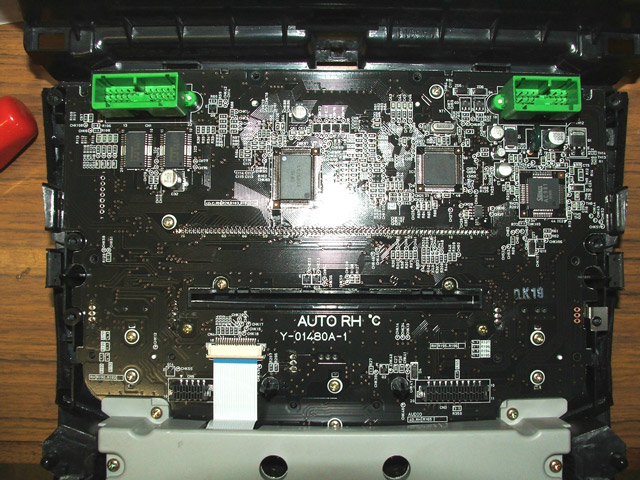

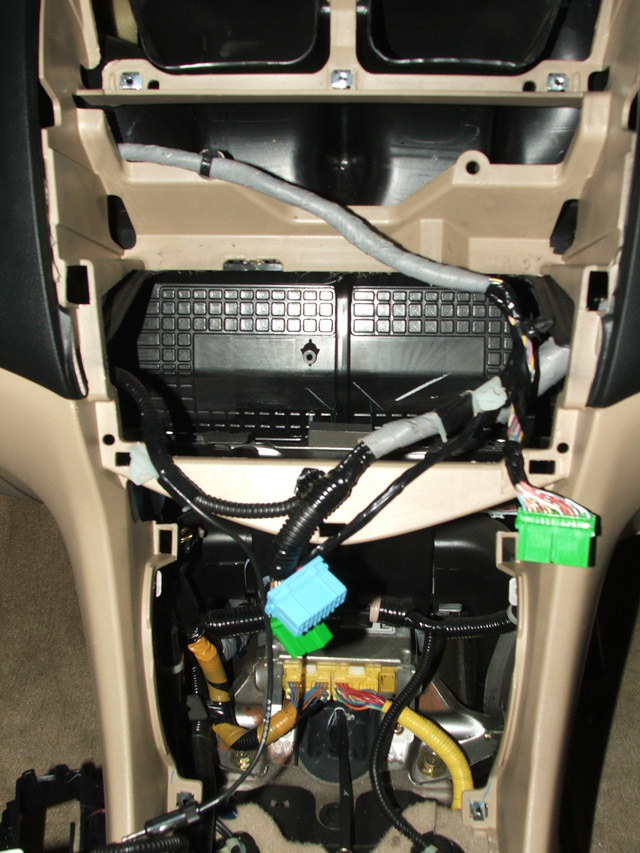

| Centre Dash open | Centre Dash open | Back of HVAC-Audio PCB | Back of HVAC-Audio |
|
|
|
|

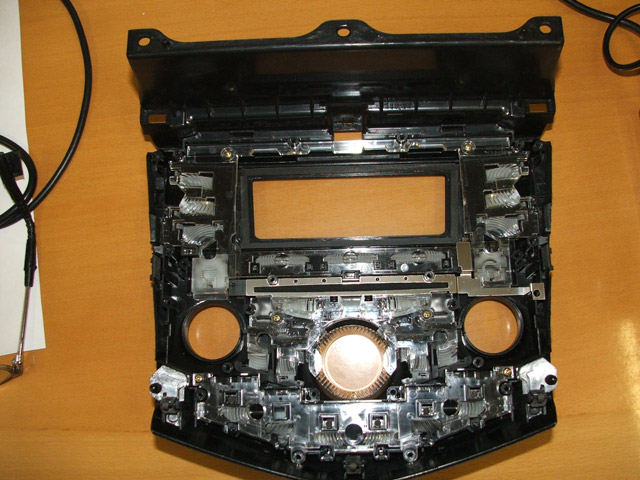

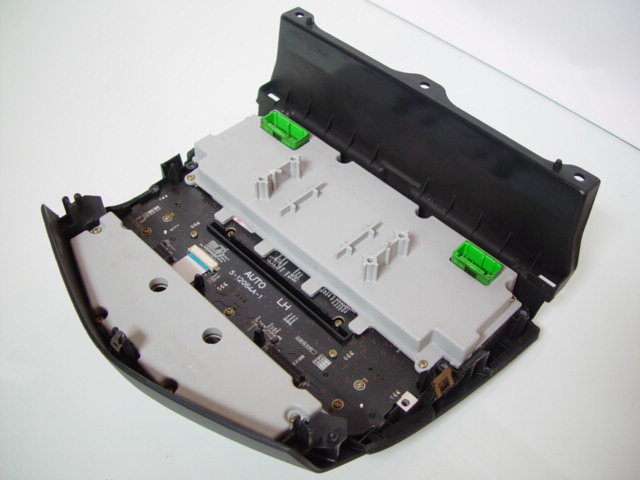

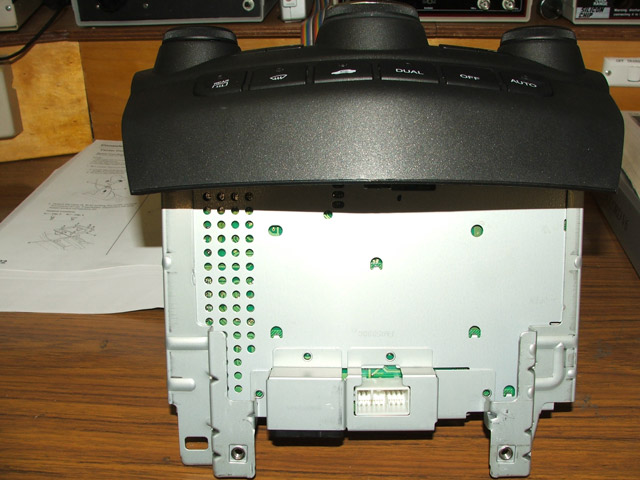

| Front of HVAC-Audio | Radio CD removed | HVAC-Audio Facia | Radio CD |
|
|
|
|

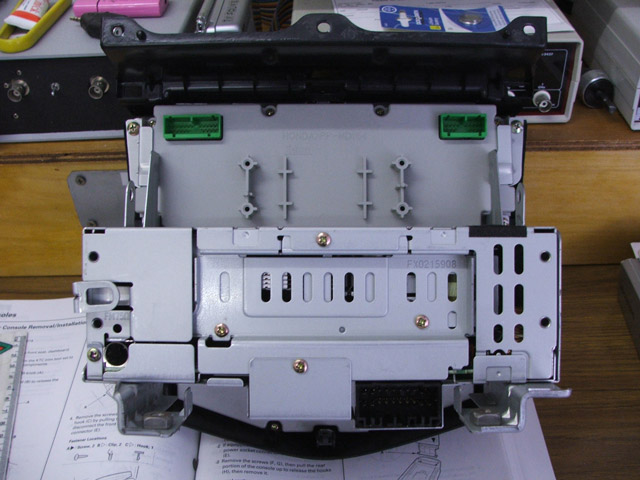

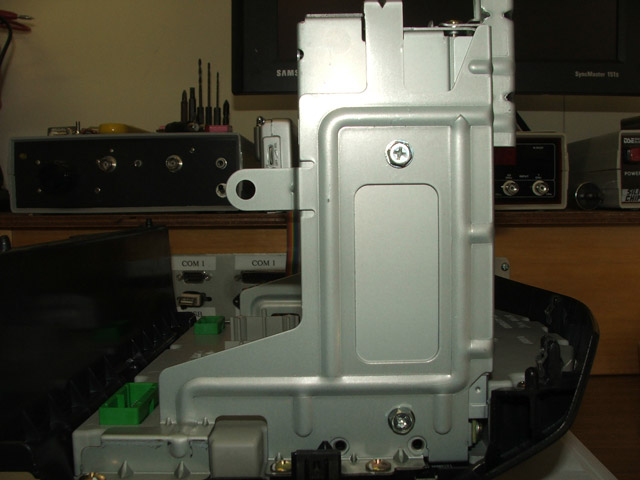

| Radio CD | Radio CD | Radio PCB connector |
HVAC Radio - CD centre console

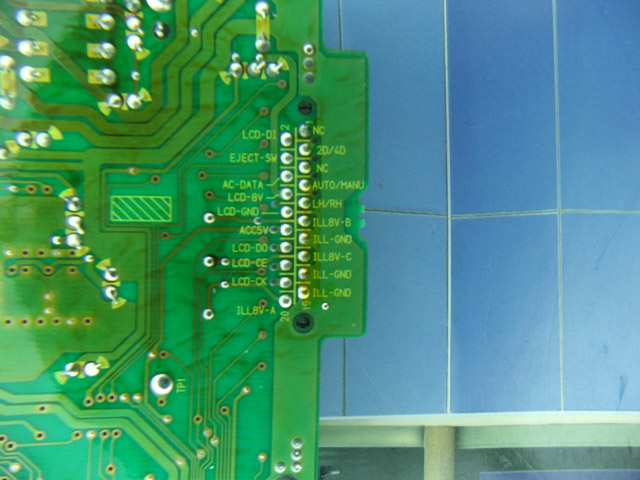

Note the Radio PCB to HVAC-Display PCB plug - last pic - has backlight and illumination lines labelled along with Data control and LCD control lines.
